Flashes when printing labels
How do flashes occur during label printing?
After label printing, the adhesive labels are punched out of the material roll using a cutting die or a laser punch. During this process, the final format deviates from the specified format by a fraction of a millimeter for processing reasons (printing stock, grammage, material volume, temperature, speed). If the print motif is to end exactly at the edge of the label, this can result in small, white edges - known as "glares". These flashes are visible to the eye. Particularly with elements that fall off the edge, such as images and colored backgrounds, they disrupt the visual appearance of label printing. With high-quality labels, this is enough to generate a lot of expensive waste paper for the waste paper garbage can.
Printing labels - What is a trim?
The paper edge in label printing is the line along which a label is punched to the final format. If printed areas (color areas, photos, graphics) extend exactly to the paper edge of a finished printed product, this is referred to as elements falling off the edge or in the bleed.
Such elements are created in print templates with bleed. These must be created 2 mm larger beyond the page margin in the layout program. The value for the bleed must be 2 mm on all four edges of the label.
In the layout programs Adobe InDesign and QuarkXPress the bleed works quite simply. In Office programs such as Word or PowerPoint, no bleed can be defined.
An example: Adding bleed in InDesign
InDesign uses the term "bleed". The bleed can be entered as a bleed when you create the document.
To do this, the "More options" selection must be made. The bleed can be added later via "File" and "Document setup". In the print menu, the option "Use bleed settings of the document" must then be activated under "Marks and bleed".
Learn even more about print data?
Learn how to create a die-cutting outline or view all common print data requirements.
These articles may also interest you:

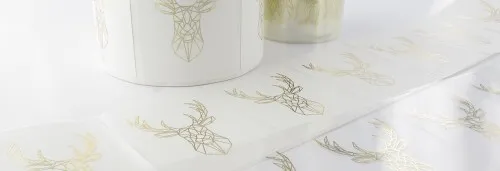

Label printing on foil and paper
